What if you could instantly expand your living space with just a simple movement? Rack slide-out mechanisms make this dream a reality, offering easy access and optimized storage. The 2-rack slide-out mechanism takes it even further, providing more space and the ability to handle heavier loads.
In this article, we’ll dive into how these mechanisms work, with a special focus on the 2-rack design and its impact on RVs. You’ll also discover how the TZQT155-X RV Expansion Mechanism is transforming the way RV owners maximize their space.
A rack slide-out mechanism is a system that enables a compartment or equipment mounted on racks to slide in and out of a fixed area. These systems are composed of multiple components: slide rails that guide the movement, support structures that stabilize the rack, and locking mechanisms that secure the rack when fully extended or retracted.

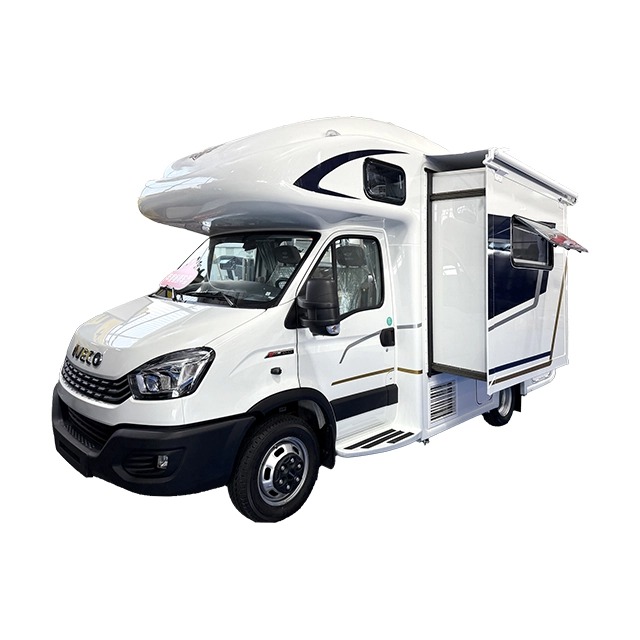

For instance, in RVs like self-propelled motorhomes, the TZQT155-X RV Expansion Mechanism utilizes a unique rack slide-out mechanism to expand the living or cargo space. When the vehicle is parked, this mechanism allows a compartment to extend outward, increasing the available interior space by as much as 800mm. This not only enhances the comfort of the occupants but also allows RV owners to store more items, all while maintaining the vehicle's structural integrity.
Key Components of a Rack Slide-Out Mechanism:
● Rack: This is the compartment that holds the items.
● Slide Rails: These are the tracks that guide the movement of the rack.
● Locking Mechanism: It ensures that the rack remains in place once it has been extended.
● Expansion Mechanism (in RVs): The TZQT155-X RV Expansion Mechanism, for example, allows the RV compartment to extend out when parked, increasing space.
Rack slide-out mechanisms are designed to provide smooth, easy movement of racks or compartments. The basic functionality involves sliding a rack out from a compact space to an extended position where it is easily accessible. This is achieved through the use of guide rails, which allow the rack to slide in and out with minimal friction. Here's a breakdown of the process:
1. Movement Initiation: The user initiates movement by pulling or pushing the rack, which is guided along the slide rails. The movement is typically assisted by rollers or tracks to reduce friction.
2. Mechanical Advantage: A well-designed slide-out mechanism, such as the TZQT155-X, allows for smooth movement, even under heavy loads. The system is engineered to distribute the load evenly, ensuring the mechanism operates smoothly without excessive force.
3. Stability and Safety: Once the rack is fully extended, mechanisms like locking systems or dampers prevent it from falling or tilting. For RVs, the TZQT155-X includes support rollers at the base of the compartment to evenly distribute the weight, ensuring the compartment stays stable when extended.
The TZQT155-X is designed to operate with a DC 12V power supply, consuming 5A current, and incorporates safety features like a 20A fuse to prevent overloads.
Rack slide-out mechanisms have diverse applications across different sectors. They are especially useful in environments where space is limited and efficient organization is required. Some of the key applications include:
● Server Racks: In data centers, slide-out racks provide easy access to equipment for maintenance and upgrades, improving overall efficiency.
● Kitchen Drawers: In homes, slide-out racks are used in kitchens to make deeper cabinets more accessible.
● RV Expansion: The TZQT155-X RV expansion mechanism is a perfect example of how these systems are utilized in recreational vehicles. It allows owners to expand compartments for added space and comfort when parked.
In the case of RVs, the TZQT155-X offers the flexibility to expand living or storage areas by up to 800mm. This is particularly useful for expanding bedrooms or creating more comfortable seating areas in self-propelled RVs or increasing cargo capacity in trailer RVs.
The 2-rack slide-out mechanism offers several advantages over single-rack systems, making it an ideal solution for situations where greater load capacity, stability, and functionality are required. Some of the key benefits include:
● Increased Load Capacity: The dual-rack design allows for a higher load-bearing capacity, making it suitable for storing heavy equipment or furniture. For instance, the TZQT155-X can support a weight of up to 500kg, which is ideal for carrying large items in RVs.
● Enhanced Organization: The additional rack offers better organization by allowing separate compartments for different items. This is especially useful in settings where items need to be segregated or categorized.
● Optimized Space Usage: With two racks, more items can be stored in the same amount of space, making it ideal for compact environments like RVs or small offices.
These advantages make the 2-rack slide-out mechanism a versatile and effective solution for maximizing space without sacrificing storage capacity.
While traditional single-rack slide-out mechanisms are still widely used, the 2-rack slide-out mechanism offers several distinct advantages, especially in applications requiring heavy-duty storage or efficient space management. The primary differences between the two systems are:
Feature | 2-Rack Slide-Out Mechanism | Single-Rack Slide-Out Mechanism |
Load Capacity | Higher (up to 500kg) | Lower load capacity |
Stability | Greater, with even load distribution | Less stable, especially under heavy loads |
Space Utilization | Better use of available space | Limited space optimization |
Functionality | More versatile for varied storage needs | Basic functionality |
The 2-rack system also provides better stability due to the dual racks sharing the load, ensuring that the mechanism remains balanced even under heavy weight.
Choosing a 2-rack slide-out mechanism offers numerous benefits, particularly when dealing with larger storage needs or heavier loads. Here are some reasons why users opt for this design:
● Durability: The dual-rack design is more durable than a single-rack system, making it more suitable for environments where heavy usage is expected.
● Ease of Use: With two racks, items can be organized more efficiently, making it easier to access them without moving other items.
● Increased Storage: The 2-rack system allows for better storage optimization, especially in compact spaces such as RVs, where maximizing space is crucial.
For RV owners, the TZQT155-X RV Expansion Mechanism offers a seamless solution to expand interior spaces, improving both comfort and storage capacity.
Durability is a key factor in the design of any rack slide-out mechanism. High-quality materials ensure that the system can withstand frequent use and environmental stress. Some of the common materials used include:
● Stainless Steel: Provides strength and corrosion resistance, making it suitable for heavy-duty applications.
● Aluminum: Lightweight but strong, making it ideal for RV applications like the TZQT155-X, where minimizing weight is important.
● Heavy-Duty Plastics: These are cost-effective and lightweight, offering moderate durability for less demanding applications.
For example, the TZQT155-X features dual-layer waterproof seals and corrosion-resistant materials that enhance its durability and functionality in outdoor environments.
Selecting the appropriate rack slide-out mechanism depends on several factors, including load capacity, frequency of use, and available space. For instance, the 2-rack system is ideal for environments where heavy items need to be stored, while the TZQT155-X is designed specifically for RVs where space is limited, but expansion is necessary.
When choosing a system, consider the following:
● Weight: The TZQT155-X can handle up to 500kg, making it suitable for heavy-duty applications.
● Frequency of Use: Systems used frequently should be durable and easy to operate. The TZQT155-X operates on a DC 12V system, making it energy-efficient and ideal for long-term RV use.
● Space Requirements: In compact settings like RVs, the 2-rack system or TZQT155-X offers the best balance of space optimization and load-bearing capacity.
Rack slide-out mechanisms are often integrated with other systems to improve overall efficiency. For example:
● Automation: Many modern systems, such as the TZQT155-X, integrate with RV electrical systems, making them easier to control.
● Waterproofing: The TZQT155-X features a rainwater management system, ensuring that water does not enter the RV during heavy rain.
Rack slide-out mechanisms, especially the 2-rack design, provide key benefits in space optimization, load capacity, and functionality across industrial, commercial, and RV applications. The TZQT155-X RV expansion mechanism by Taicang Dongtai Precision Co., Ltd. exemplifies how this technology enhances RV living space without compromising mobility or stability.
By considering factors like load capacity and space constraints, users can select the right mechanism for their needs. The 2-rack slide-out mechanism offers a reliable, efficient solution for expanding living or storage space.
When choosing a rack slide-out mechanism for an RV, ensure compatibility with the vehicle’s electrical system and structure. The TZQT155-X from Taicang Dongtai Precision Co., Ltd. integrates seamlessly into most RV setups.
A: A rack slide-out mechanism is a system that allows compartments or racks to slide in and out of a designated space, providing easier access and optimizing space. The 2-rack slide-out mechanism enhances this by offering increased load capacity and better organization.
A: The 2-rack slide-out mechanism operates by using two racks that slide independently along tracks, allowing for greater weight distribution and stability. This system is commonly used in various applications, including RV expansion mechanisms, to increase living or storage space.
A: The 2-rack slide-out mechanism in RVs provides enhanced storage and living space. It allows for greater load capacity, easier access to items, and improved organization, making it ideal for maximizing space in compact RV layouts.
A: Yes, RV expansion mechanisms like the 2-rack slide-out system can expand the interior of an RV by adding extra space, ideal for creating more room for seating, storage, or sleeping areas when the RV is parked.
A: A 2-rack slide-out mechanism offers better load distribution and stability compared to a single-rack system. It can carry heavier loads and optimize space more effectively, especially in RVs, making it a better choice for heavier and bulkier items.
