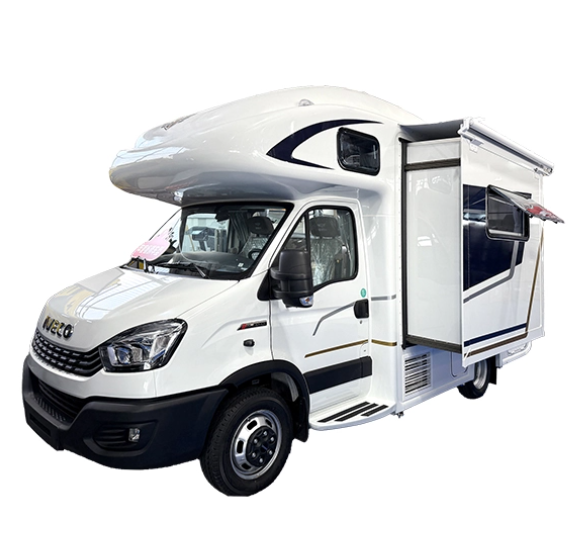

The TZQT155-X is a high-performance RV expansion mechanism engineered to enhance living spaces in A, B, C type self-propelled RVs and trailer RVs.
| Quantity: | |
|---|---|
The TZQT155-X RV Expansion Mechanism is an industry-grade, high-performance motor home slide out mechanism purpose-built for A, B, C class self-propelled RVs and trailer RVs. Engineered for seamless integration into mass production and professional upfitting workflows, this system enables RV compartments to extend outward when parked, boosting interior usable space by up to 800mm while maintaining full structural integrity. Tailored for global RV manufacturers, fleet operators, and commercial upfitters, the TZQT155-X RV compartment expansion system balances heavy-duty performance, long-term durability, and flexible customization, delivering reliable operation across diverse camping and commercial environments worldwide.
Parameter | Specification |
Model | TZQT155-X RV Expansion Mechanism |
Maximum Extension Stroke | 800mm |
Recommended Safe Operating Stroke | 500–650mm |
Maximum Uniform Load Capacity | 500Kg |
Operating Power | DC 12V, 5A Current |
Mandatory Overload Protection | 20A Input Fuse |
Unit Net Weight | ~10Kg |
Waterproof Design | Dual-Layer Wiper + D-Shaped Bubble Seals |
Standard Warranty | 2 Years for Manufacturing Defects |
With a 500Kg maximum load capacity, the heavy-duty RV slide out mechanism supports full-size furniture, built-in appliances, and heavy equipment without deformation. This empowers OEMs to design more functional, high-end RV layouts, increasing product differentiation and market pricing power, while even weight distribution minimizes structural wear and post-sales maintenance claims.
While delivering a maximum 800mm stroke, the system’s 500–650mm recommended safe range prevents overextension, reducing mechanical stress and extending service life. This engineering safeguard lowers safety liability risks for manufacturers, ensures compliance with global RV safety standards, and reduces costly product recalls.
Operating on a standard DC 12V RV electrical system with 5A current draw, the custom RV expansion mechanism integrates seamlessly into existing vehicle wiring without complex modifications. Built-in overload protection enhances operational safety, cutting installation labor and material costs for mass production lines.

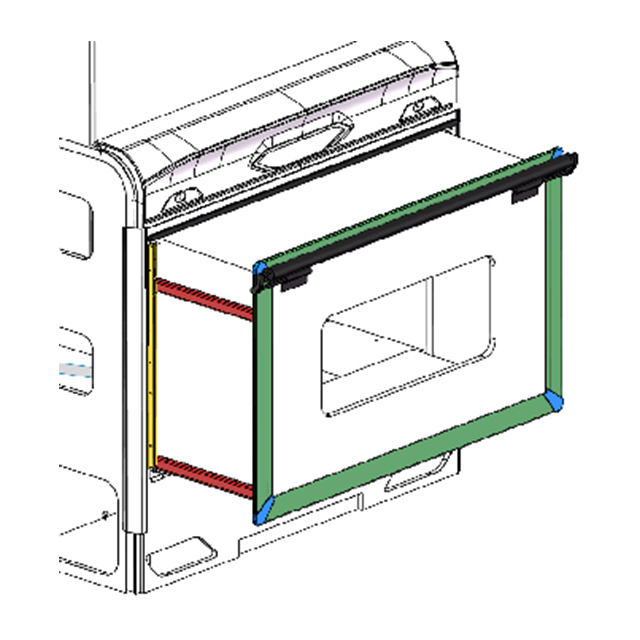

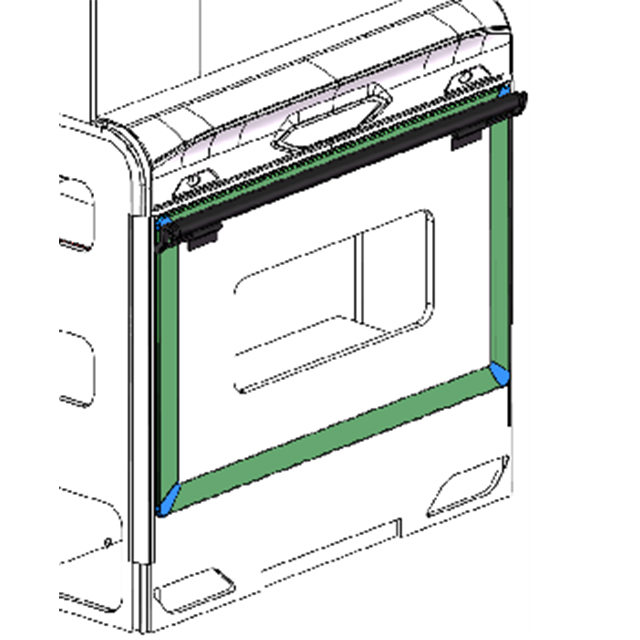

The system features dual-side sealing for a watertight barrier, paired with a base water receiving tray to divert rainwater. This design meets strict outdoor durability standards, eliminating water ingress complaints and reducing warranty claims for manufacturers, even in heavy downpours.
Mass production of A/B/C class self-propelled RVs, for expanding bedroom, living room, and dinette layouts
Trailer RV and fifth-wheel upfitting, for adding expandable cargo space and outdoor kitchen areas
Commercial RV fleet customization, for rental fleets and mobile hospitality units to boost unit revenue
Pre-Installation Preparation: Confirm compartment dimensions, vehicle load limits, and 12V power access, with mounting hardware and support rollers prepped
Alignment & Fixture Installation: Secure main rails to the compartment frame, install support rollers for even weight distribution, and calibrate slide alignment
Electrical Integration & Testing: Connect to the 12V power supply with required overload protection, perform full stroke cycle testing, and verify safety functions
We offer end-to-end OEM RV expansion mechanism customization for bulk clients, including tailored wheelbase, track width, dimensions, and waterproof accessories to match specific RV models. Optional telescopic canopies and brand labeling are available, with custom solutions delivered within 4–6 weeks of parameter confirmation, plus dedicated engineering support throughout integration.
Standard bulk orders have a 2–3 week lead time; fully customized OEM solutions are delivered within 4–6 weeks after sample approval.
Yes, it is engineered for seamless integration with all mainstream RV types, with full customization to match unique chassis and compartment dimensions.
A standard 2-year warranty for manufacturing defects is provided, with extended warranty options for commercial and fleet applications.
Yes, the standardized workflow is optimized for high-efficiency mass production, with dedicated technical support to reduce per-unit installation time.
