About the product

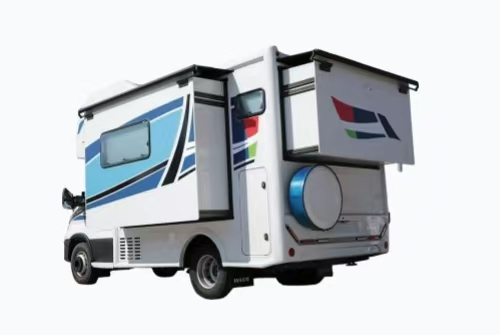

This product is suitable for type A, B, and C self-propelled RVs and trailers. After the vehicle is parked, it can extend outward to increase internal space of the RV.
The extension mechanism features an elegant appearance, easy installation, safety and reliability, simple operation, and convenience in use which can help effectively enhance product competitiveness in the RV modification industry.
Specification
1. Weight: Approximately 10 kg;
2. Maximum extension stroke: 800 mm (recommended safe travel distance: 500 mm to 650 mm);
3. Maximum load-bearing capacity: 500 kg (supoport rollers must be installed on the bottom of
the vehicle);
4. Voltage: DC 12 V;
5. Rated current: 5 A (a 20 A fuse must be installed on the power input);
6. The mechanism is mounted on both sides of the expansion cabin;
7. Wiper seals and D-shaped foam seals are installed inside and outside to ensure a waterproof
seal when the expansion cabin is fully closed or extended;
8. Aater tray and water collection profile are installed at the bottom of the mechanism. When
the expansion cabin is extended for use, rainwater flowing down the expansion cabin and mechanism will be blocked by the water collection profile and drained out of the vehicle, preventing rainwater from entering the vehicle interior;
