Have you ever struggled with cramped space in your RV? What if there was a way to maximize every inch of your living area? Rack slide-out mechanisms are revolutionizing how we utilize space in RVs. These systems extend compartments or racks, providing more storage without taking up additional floor space.
In this article, we’ll explore the different types of rack slide-out mechanisms, including the Rear Rack Slide-Out Mechanism, and how innovations like the Dongtai Self-Developed Inclined Lifting Mechanism are changing the way RV owners optimize their living spaces.
Rack slide-out mechanisms are engineered to extend storage compartments, racks, or other functional elements out of their fixed positions using tracks, rails, or automated electric systems. These systems operate through simple yet efficient mechanisms, with options ranging from manual to motorized, depending on user preference and the complexity of the system.
In RVs, these systems help maximize the use of space. By extending racks or drawers, RV owners can store camping gear, kitchen essentials, and other necessities without cluttering the RV’s interior. The RV Expansion Mechanism often incorporates automated functionality, allowing these slide-out compartments to extend and retract with minimal effort.
An advanced example of such a system is the Dongtai Self-Developed Inclined Lifting Mechanism, which specifically targets roof upgrades in RVs. This system integrates a high-performance electric push rod and a multi-link hinge system to lift the RV’s roof to a maximum height of 1087 mm, offering more headroom and expanded living space. The lifting system operates on a 12V power supply and can be controlled remotely, providing ease of use, particularly for those who want an effortless solution for maximizing space in their RV.

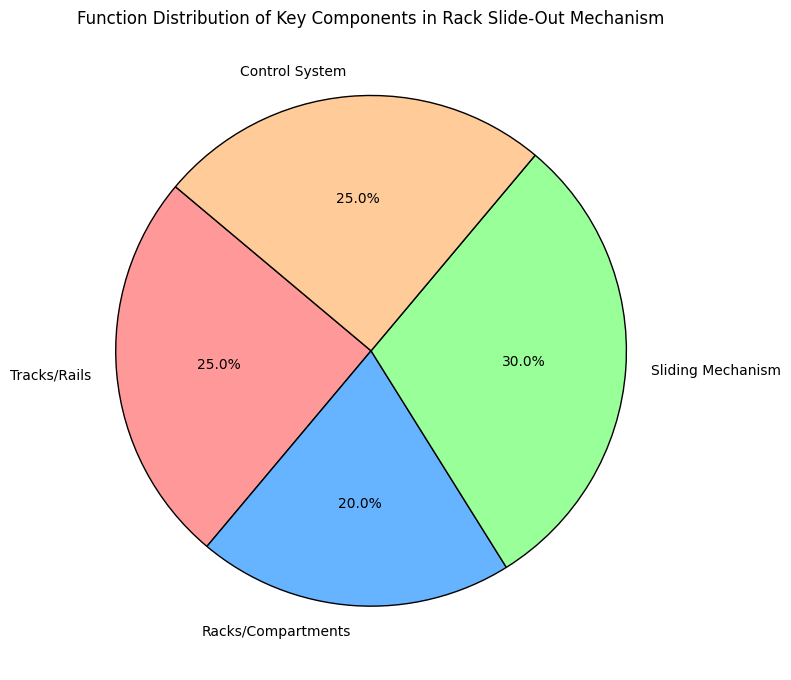

Rack slide-out mechanisms consist of several essential components that work together to ensure smooth operation. These include:
1. Tracks/Rails: The tracks are the foundation of the slide-out mechanism. They guide the movement of the racks or drawers, ensuring they extend and retract smoothly and securely.
2. Racks/Compartments: These are the items or storage areas that slide out, providing additional space for storage or functionality.
3. Sliding Mechanism (Electric or Manual): The sliding mechanism can either be operated manually or electronically. Manual systems use handles or levers to pull the rack out, while electric systems use motors to automate the process.
4. Control System: The control system enables the operation of the mechanism. For manual systems, it might be as simple as a lever, but motorized systems can include remote controls, buttons, or even app-based controls.
When looking at more advanced systems like the Dongtai Inclined Lifting Mechanism, the components extend to include electric push rods, multi-link hinges, and a remote control system, all designed to allow for the easy lifting and lowering of the RV roof. These advanced components enhance both the reliability and performance of the system, ensuring that the lifting mechanism operates efficiently and smoothly.
Rack slide-out mechanisms are built using various materials based on their intended use and required durability. The choice of materials plays a significant role in the efficiency, weight, and longevity of the mechanism. Commonly used materials include:
● Steel and Aluminum: These metals are used in the tracks and frames, providing the strength and durability necessary to support the sliding motion. Aluminum is particularly valued for its lightweight properties, which help reduce the overall weight of the system.
● Plastic and Composite Materials: Lighter materials, such as plastic or composite, are used for certain components of the system to reduce weight. These materials are often used for the compartments or non-load-bearing parts of the mechanism.
● Wood: In RVs, wood is often used in the compartments or racks to match the interior aesthetic. Wood can provide a natural look and is suitable for lighter applications.
The Dongtai Inclined Lifting Mechanism is crafted from materials that are designed to withstand challenging environmental conditions. With its IP67 waterproof rating, it is designed to perform reliably in harsh weather conditions, making it a suitable solution for RV owners who frequently travel in diverse climates. This system can operate in temperatures ranging from -30°C to 60°C, ensuring versatility and durability in various conditions.
The single-rack slide-out mechanism is a straightforward, easy-to-use system commonly found in smaller RVs or applications where space requirements are modest. This design features a single sliding rack that extends from a fixed compartment, allowing users to store and access items without cluttering the RV’s interior. It is typically operated manually, making it a simple and cost-effective option for RV owners looking to maximize storage in smaller spaces.
While it is ideal for basic storage needs, the Dongtai Inclined Lifting Mechanism takes this concept further by lifting the roof of the RV, creating significantly more space for occupants. This electric lifting system offers up to 1087 mm of headroom, expanding the usable interior space, especially for people who require more living area inside their RV.
The double-rack slide-out mechanism features two racks that extend simultaneously, doubling the storage capacity. This system is ideal for larger RVs that require more space for storage or functionality. It is often used to store bulkier items such as outdoor gear, cooking supplies, or recreational equipment.
The Dongtai Inclined Lifting Mechanism, while primarily focused on roof expansion, also exemplifies the idea of maximizing space through efficient designs. By incorporating a full inclined roof system, this mechanism adds more headroom without the need for bulky, traditional racks. Instead of simply extending storage compartments, this system increases the overall functionality of the RV, allowing users to customize their space for both living and storage needs.
The motorized slide-out mechanism is an advanced version of the slide-out design, where the rack or compartment is automatically extended and retracted using an electric motor. This system provides greater ease of use, particularly for larger, heavier compartments, and is often controlled via remote or switch.
Motorized systems, like the Dongtai Self-Developed Inclined Lifting Mechanism, allow users to lift or lower the RV roof effortlessly, making it a highly convenient solution for people who need additional space but want minimal manual effort. The system’s ability to operate on a 12V power supply ensures compatibility with most RV setups, and the remote control functionality adds further convenience by allowing users to adjust the roof without leaving their seats.
The manual slide-out mechanism remains a popular choice for RV owners who prioritize simplicity and cost-effectiveness. This mechanism requires the user to manually pull or push the rack to extend or retract it, providing a straightforward but effective solution for increasing storage space.
While manual mechanisms are less automated, they remain highly reliable and are often preferred in applications where automation isn’t necessary. The Dongtai Inclined Lifting Mechanism offers a more advanced option for roof lifting but remains grounded in simplicity, offering ease of operation while maintaining a robust design.
Rack slide-out mechanisms, whether motorized or manual, offer an efficient way to optimize storage and living space inside an RV. By extending compartments or racks, these systems maximize the available space without taking up additional floor area. This is especially important in RVs, where space is at a premium and every inch counts.
The RV Expansion Mechanism, as seen in advanced systems like the Dongtai Inclined Lifting Mechanism, allows RV owners to create more living space without the need for bulky furniture or storage solutions. For instance, by lifting the roof of the RV, users can significantly increase headroom, which can make a big difference in comfort during extended stays.
Another significant benefit of rack slide-out mechanisms is improved accessibility. Traditional storage areas in RVs can often be difficult to access, requiring users to bend, stretch, or crawl to retrieve items. Rack slide-out mechanisms eliminate these challenges by allowing users to pull out storage compartments, making it easier to access all their belongings without the hassle.
For roof upgrades, systems like the Dongtai Inclined Lifting Mechanism not only increase space but also enhance accessibility, allowing users to adjust the roof height with ease using a remote control. This makes it particularly useful for those who need extra headroom for sleeping or other activities.
The addition of rack slide-out mechanisms can increase the value of an RV. These upgrades make the RV more functional and appealing to potential buyers by providing enhanced storage options, improved living space, and overall comfort. For example, the Dongtai Inclined Lifting Mechanism offers a comprehensive solution to increasing headroom, making it a desirable feature for those looking for a more spacious RV experience.
Before installing any type of rack slide-out mechanism, it’s important to consider the weight capacity. Many slide-out systems have weight limits, and exceeding these limits can result in damage to the mechanism or even compromise the safety of the RV. The Dongtai Inclined Lifting Mechanism has a maximum lifting capacity of 75 kg, which is ideal for most storage and roof upgrade applications. This capacity ensures that the system can handle the weight of the roof or other equipment without strain.
When selecting a slide-out mechanism, it’s essential to measure the available space in your RV. Some mechanisms require more space to operate effectively, while others are more compact and can fit into tighter areas. Make sure the system fits well with the RV’s layout to avoid any installation issues.
Ease of installation is another crucial factor when choosing a rack slide-out system. Some systems, like the Dongtai Inclined Lifting Mechanism, are relatively easy to install and can be customized to fit a variety of RV models. However, more complex systems may require professional installation. Once installed, regular maintenance is necessary to ensure the system functions correctly and lasts for years to come.
Rack slide-out mechanisms offer a practical and effective way to maximize storage and space in RVs. Whether manual or motorized, these systems can transform the way you use your RV, providing more storage, greater accessibility, and enhanced living space. The Dongtai Precision Co., Ltd.'s Self-Developed Inclined Lifting Mechanism is a prime example of how these technologies are evolving to offer more sophisticated, customizable solutions for modern RV users. With advanced features like remote control operation, high lifting capacity, and environmental adaptability, this mechanism ensures a higher quality of life on the road by optimizing every inch of available space.
A: A rack slide-out mechanism is a system used to extend racks, drawers, or compartments from their fixed position to maximize storage space in RVs, including advanced solutions like the Rear Rack Slide-Out Mechanism.
A: The Rear Rack Slide-Out Mechanism works by using tracks and a sliding system to extend a rack, offering better access and storage without occupying more floor space in your RV. It’s part of the broader RV Expansion Mechanism.
A: The RV Expansion Mechanism allows RV owners to maximize living space without sacrificing comfort. It helps in organizing storage efficiently and improving accessibility, ensuring a more functional RV interior.
A: A Rear Rack Slide-Out Mechanism makes accessing your gear easier and enhances storage. It optimizes space without requiring more floor area, making it perfect for maximizing compact RV interiors.
A: Installation time for a Rear Rack Slide-Out Mechanism can vary, but it typically takes a few hours to a day, depending on the system complexity and your RV model.
