Straight Up Type Pop Up Roof

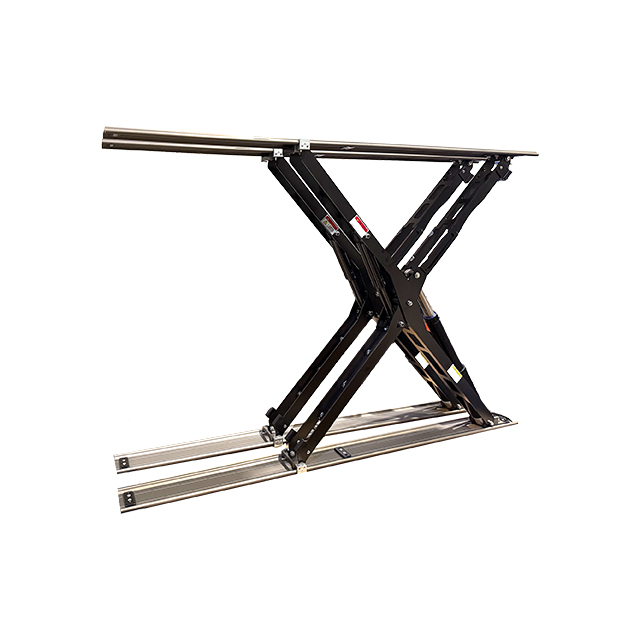

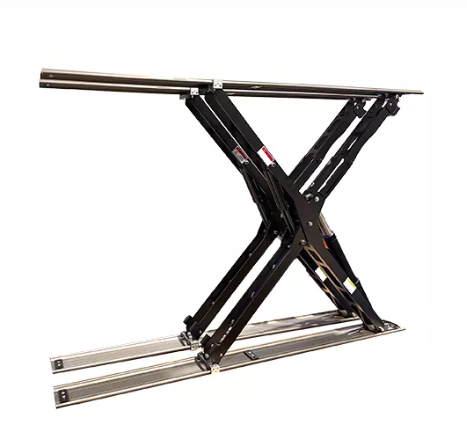

Product and Model: Helicopter Top Mechanism

TZQT4747 (including motor control components)

Product weight: ≈ 32.8KG

Voltage: 12~24V optional

Environmental temperature for use:- 30℃~60℃

Waterproof grade: IP67

Maximum lifting capacity: 200KG (average load)

Can be fully customized according to customer needs

Length: 1300mm

Maximum lifting height: 910mm

Closing height: 110mm

Opening/closing duration: 60s

Product and Model: Helicopter Top Mechanism

Integrated flashlight lifting mechanism (including motor control components)

Maximum lifting capacity: 185/210KG (single/dual auxiliary mechanism)

Can be fully customized according to customer needs

Power outage required pulling force: 120kg/180kg (single/double auxiliary mechanism)

Increase with the increase of lifting capacity

Full load height: 690mm

Voltage: 12V

Main structure length: 1300mm

Auxiliary mechanism length: 1200mm
