No.36, Fada Road, Taicang, Jiangsu
| Quantity: | |
|---|---|
| Category | Details |
|---|---|
| Driving Modes | Provides three driving modes: electric, hand-held, and integrated (adapted according to the weight of the roof). |
| Core Mechanism | Helicopter drive mechanism (including scissor drive mechanism, follow-up auxiliary mechanism, and control system). |
| Product Weight | ≈32.8KG |
| Voltage | 12V~24V optional |
| Ambient Temperature | -30℃~60℃ |
| Waterproof Grade | IP67 |
| Maximum Lifting Capacity | 200KG (even load, customizable according to customer needs) |
| Length | 1300MM |
| Maximum Lifting Height | 910MM |
| Closing Height | 110MM |
| Opening/Closing Time | About 60S |
| Remote Control | Supports remote control for lifting and lowering; can hover throughout the whole process; optional anti-pinch protection. |
| Full Set of Helicopter Roof | Customized, including inclined roof drive mechanism, FRP composite roof (glass fiber reinforced plastic), tent, and folding bed frame inside the roof (optional). |
| Applicable Models | MPV/Other suitable models |
The Developed Vertical Lifting Mechanism provides three distinct driving modes: electric, hand-held, and integrated. These modes are designed to offer flexibility and convenience, with electric mode for automatic operation, hand-held mode for manual control, and integrated mode for a seamless combination of both, allowing it to adapt based on the roof's weight.
Dongtai’s self-developed technology ensures that the lifting mechanism is precisely tailored for a wide variety of vehicle brands and models. By customizing parameters like wheelbase, track, and size, this mechanism delivers optimal performance, meeting the specific needs of different applications.

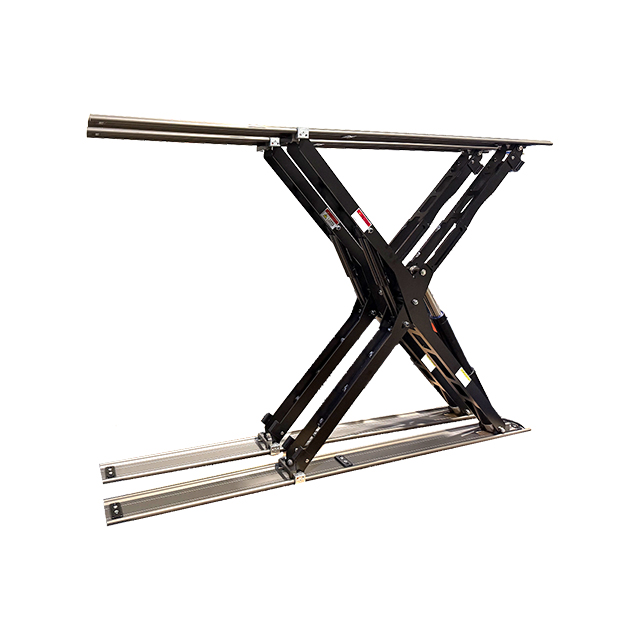

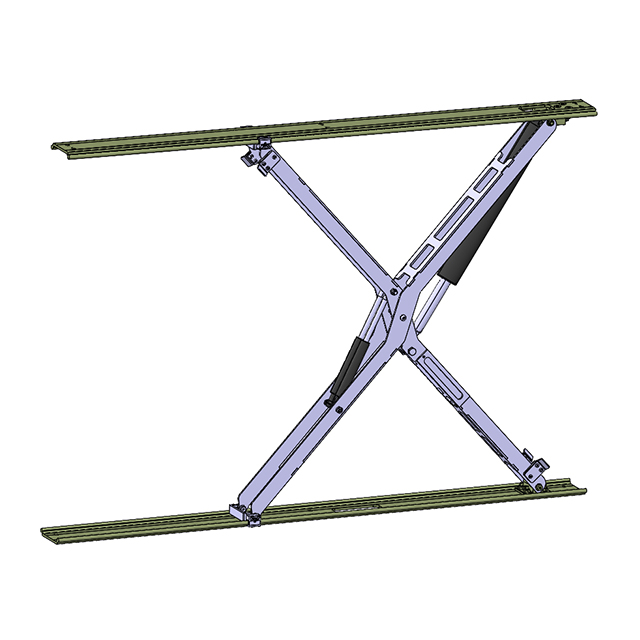

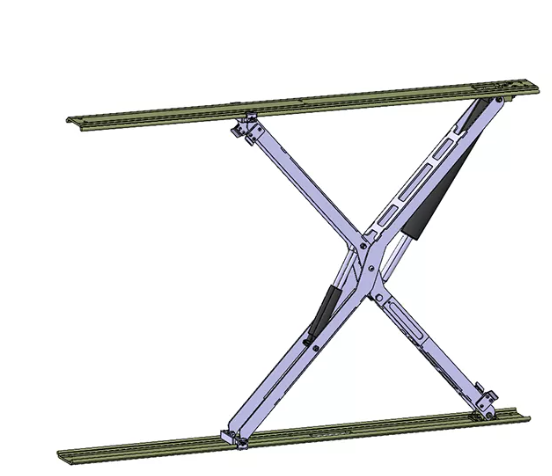

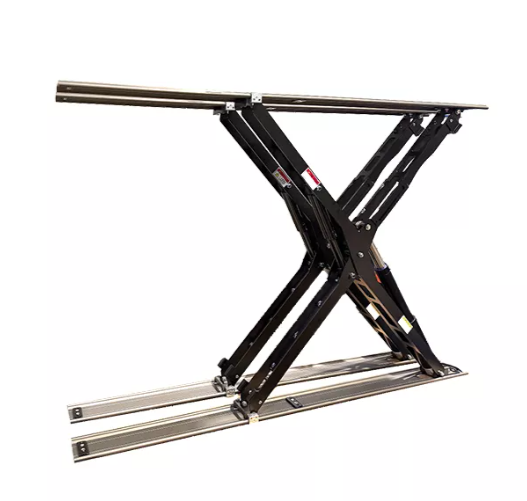

The mechanism is powered by a sophisticated helicopter drive system, featuring a scissor drive mechanism and follow-up auxiliary components. This ensures a smooth and reliable lifting process, offering increased stability and performance. The advanced control system enhances efficiency, making the lifting process seamless and precise.
The Developed Vertical Lifting Mechanism is designed with portability in mind. Its foldable feature makes it easy to carry and store, saving valuable space when not in use, making it ideal for compact environments like RVs and special engineering vehicles.

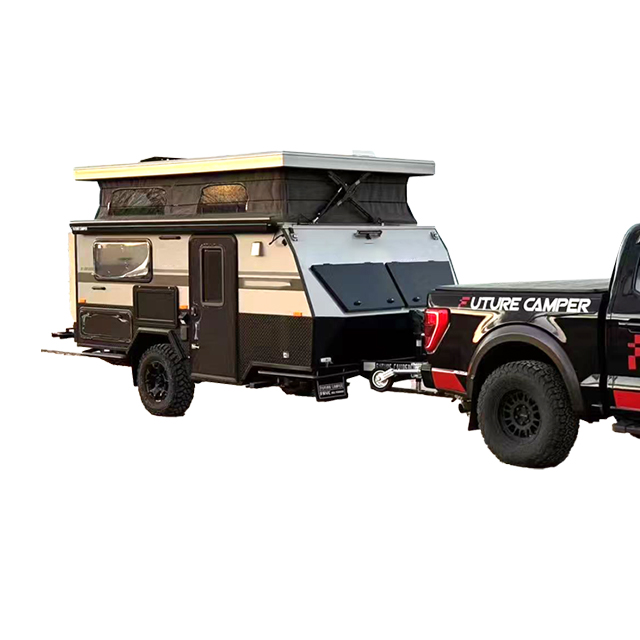

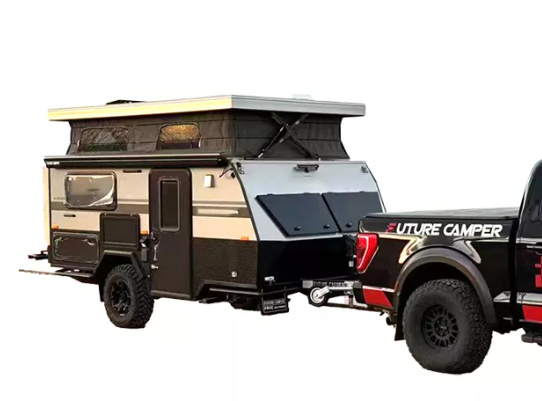

This lifting mechanism is highly versatile, suitable for a wide array of applications such as RV space expansion, camper roof upgrades, and special vehicle modifications. It can be adapted for various vehicle models, providing a flexible solution for diverse needs.
Built to withstand extreme conditions, the lifting mechanism operates efficiently in temperatures ranging from -30°C to 60°C. This makes it reliable in harsh weather environments, ensuring consistent performance even under the most challenging conditions.
The mechanism can lift up to 200KG, with the capacity customizable according to customer needs, ensuring it can handle various roof weights.
The opening and closing time for the mechanism is approximately 60 seconds, allowing for quick and efficient operation.
Yes, the mechanism is designed to be highly adaptable, with customizable options for different vehicle models, including RVs, campers, and special engineering vehicles.
Yes, the lifting mechanism is built to function in a wide range of temperatures, from -30°C to 60°C, making it reliable even in harsh environmental conditions.
