Multifunctional folding bed, lifting bed, bunk bed and other products HJBCP1881
Core advantages
Full-size flexible customization, suitable for various space layouts
Modular design enables fast installation and function switching
Basic parameters
1. The lifting bed uses aviation aluminum as the overall skeleton, with a maximum dynamic load of 60KG (excluding self-weight) and a maximum static load of 300KG.
2. The service life of the lifting bed can exceed 14,000 times (load 70KG).
3. The normal working voltage is DC12V (9~16V) and DC24V (18~30V). It will not work beyond the range, and the function will return to normal when the voltage is normal
4. Before starting the car, please confirm that the lifting bed has been raised to the highest position. If the lifting bed has not been raised to the position, there will be an output signal
5. When parking and using the lifting bed, please make sure that the handbrake is on; when operating, you need to double-click the control panel down button and hold it until the lifting bed drops to the bottom and does not move, then release the button.
6. When folding the lifting bed, you need to double-click the control panel up button and hold it until the lifting bed is raised to the top and does not move, then release the button.
7. A variety of crafts can be freely matched, and the bed board can be selected from natural poplar/birch, taking into account both environmental protection and load-bearing requirements
Lightweight aluminum alloy frame, providing 8 surface treatment processes such as sandblasting/painting/soft packing

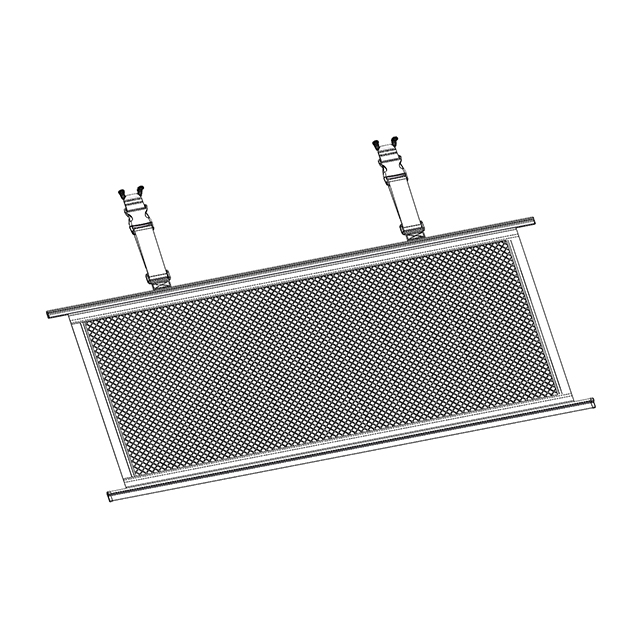

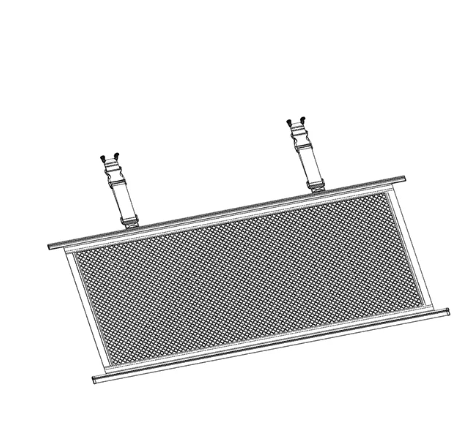

8. All products can be equipped with protective nets
Multi-scene adaptation

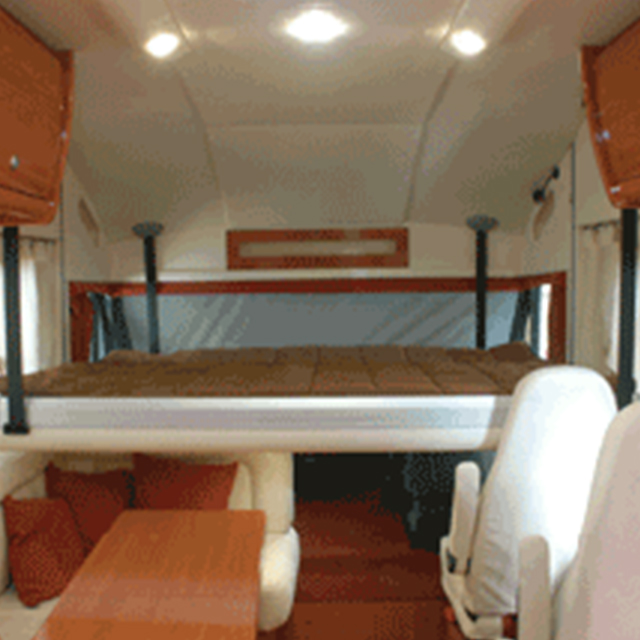

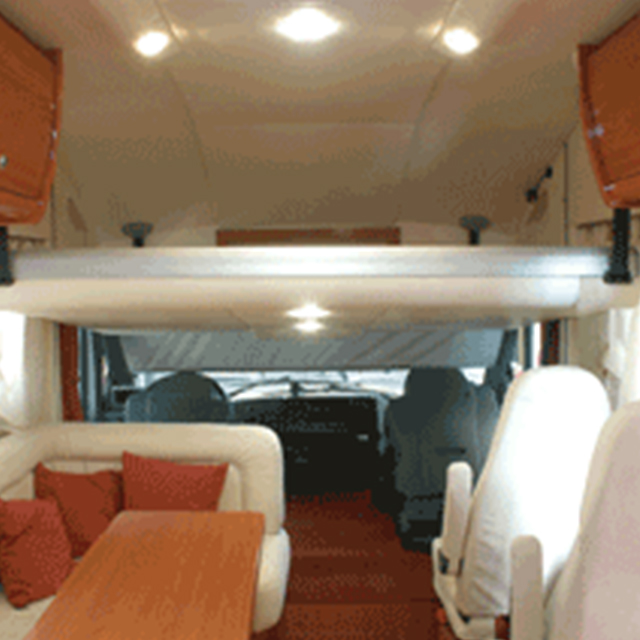

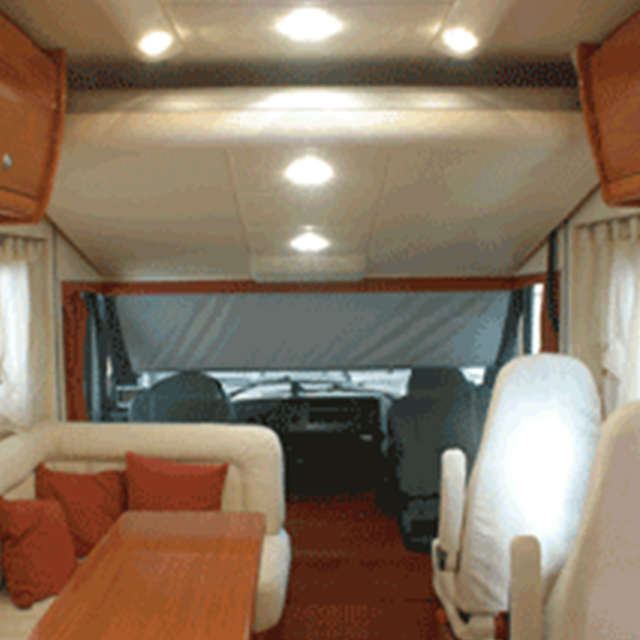

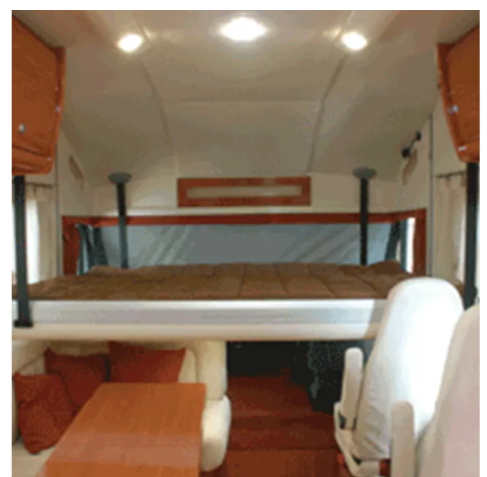

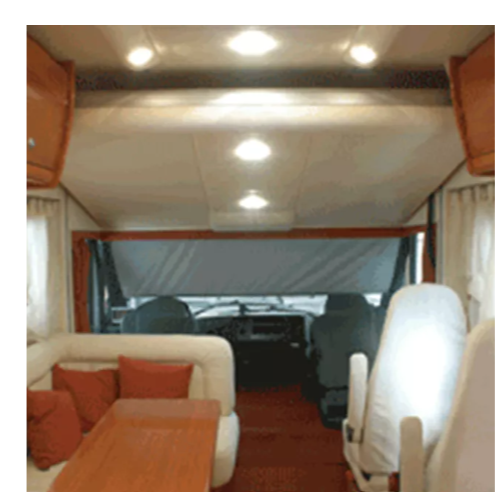

Mobile space: Optimization of the cabin space of RVs/caravans/camping cars
Residential upgrade: Three-dimensional space development of dormitories/apartments/terraces
Function extension: Can be quickly converted into a temporary office desk or storage platform
Function highlights
One-button lifting control
Hidden cable management system
