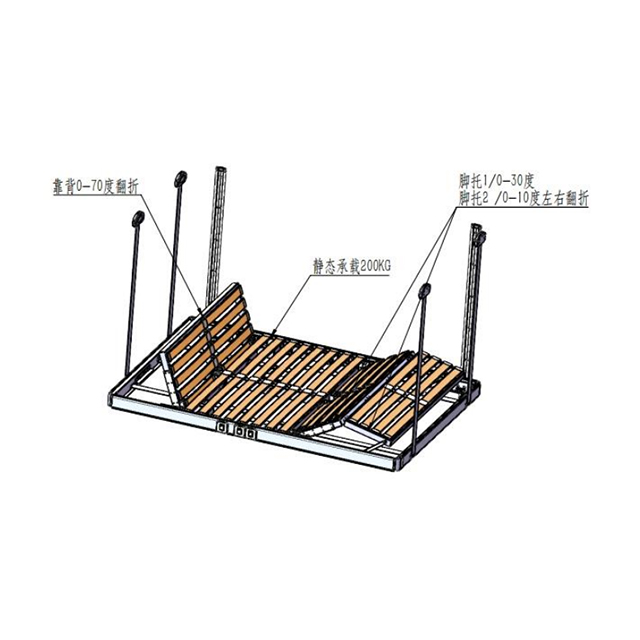

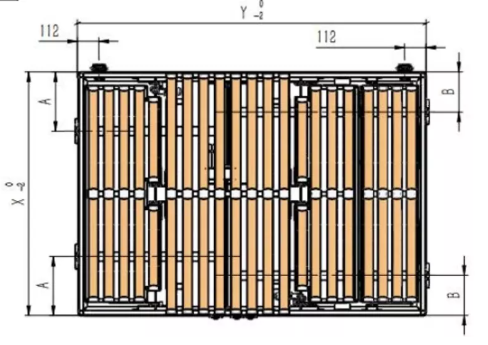

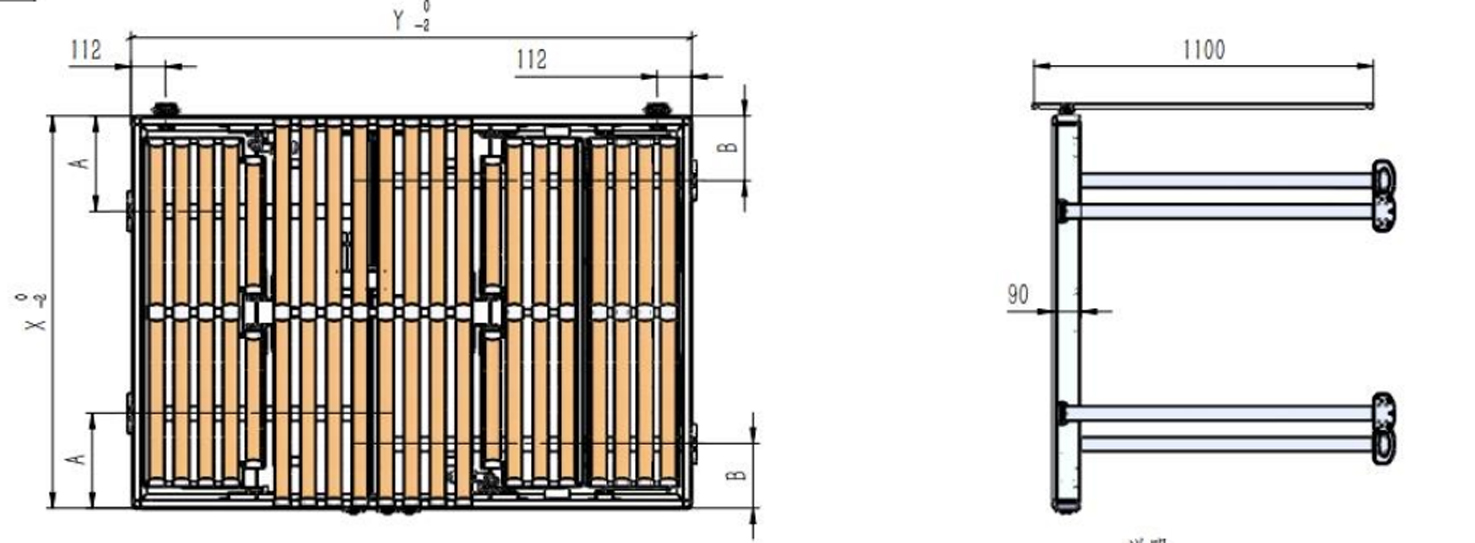

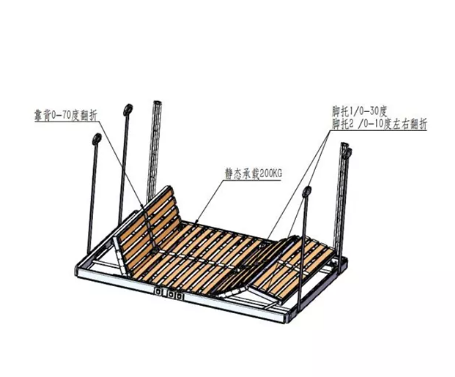

Introduction to the lift bed with folding backrest and footrest
Basic parameters
1. The lift bed uses aviation aluminum as the overall frame, with a maximum dynamic load of 60KG (excluding its own weight) and a maximum static load of 200KG.
2. The service life of the lift bed can exceed 14,000 times (load 70KG), and the surface treatment can be done as needed, and the size can be customized
3. The normal working voltage is 10~16V, it will not work beyond the range, and the function will return to normal when the voltage is normal
4. The power input is: DC12V or DC24V
5. The backrest, footrest and lifting are controlled separately. The backrest and footrest can be lifted only after they are completely flat.
6. Can be equipped with drag chain
7. Can be equipped with protective net, the size can be customized
Multi-scenario adaptation
Mobile space: Optimization of cabin space in RV/caravan/camper
Residential upgrade: Three-dimensional space development of dormitory/apartment/terrace
Function extension: Can be quickly converted into a temporary office desk or storage platform
Function highlights
One-button lifting control
Hidden cable management system, 50,000 times load lifting test before leaving the factory
