Imagine having more space at the push of a button. The Rear Rack Slide-Out Mechanism makes this possible by turning unused areas into accessible storage. This innovative solution is perfect for RVs and small homes where every inch counts.
In this article, we’ll uncover how the Rear Rack Slide-Out Mechanism works, its key components, and why it’s a must-have for space optimization. Plus, we'll dive into similar technologies like the Dongtai Self-Developed Inclined Lifting Mechanism, designed to elevate your RV experience.
A rear rack slide-out mechanism is an innovative device designed to maximize storage capacity by allowing racks or trays to extend from a storage compartment and retract when not in use. It works similarly to sliding drawers or cabinets but is specifically engineered for environments like RVs, campers, and small homes where every inch of space matters.
This mechanism generally operates on a set of rails or tracks and can be powered either manually or electrically. In its extended form, it provides access to items stored on the racks, while in the retracted form, it creates more usable space in the living or storage area. The rear rack slide-out mechanism is often used to store heavy or bulky items, such as camping gear, bikes, or large tools, and it helps organize these items more efficiently.
The rear rack slide-out mechanism comes in different designs, each catering to specific needs and weight requirements. These variations include:
Type | Description | Applications |
Single-Rack Mechanism | A single, smaller rack designed for light-duty storage. | Ideal for storing camping gear, tools, or smaller items. |
Double-Rack Mechanism | Two racks that slide out simultaneously, doubling storage capacity without compromising space. | Perfect for larger items, such as bikes, sporting equipment, or heavy-duty storage. |
Heavy-Duty Mechanism | A mechanism designed to carry heavier loads, reinforced for durability and high-capacity storage. | Used in commercial or industrial settings where larger, bulkier items need to be stored. |
Each mechanism is designed to meet the specific needs of users, ensuring that storage requirements and space limitations are effectively addressed. The right type of mechanism depends largely on the weight of the items you intend to store and the space available in your vehicle or home.

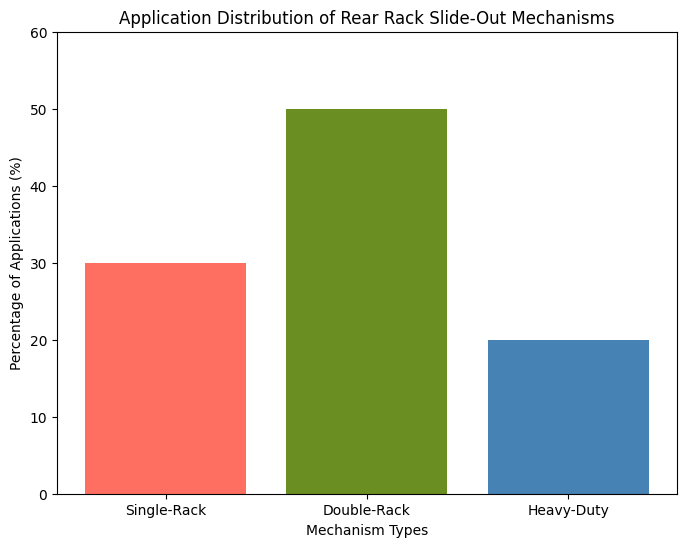

Here is a bar chart that shows the distribution of applications for the different types of Rear Rack Slide-Out Mechanisms based on the information provided in your article. The chart visually represents the percentage of use cases for the Single-Rack, Double-Rack, and Heavy-Duty mechanisms.
The rear rack slide-out mechanism consists of several key components that work together to create a seamless and efficient system. Understanding these components will help users appreciate the design and operation of the mechanism.
1. Racks: The racks themselves are the trays or shelves where items are stored. These racks are typically made from strong, durable materials such as steel or aluminum to support the weight of the stored items. Depending on the design, racks can come with adjustable dividers to help organize different types of items more effectively.
2. Rails/Tracks: The rails or tracks guide the racks during extension and retraction. They are typically made of high-quality metal or composite materials to ensure smooth movement and longevity. The rails provide the stability needed to prevent wobbling or misalignment during operation, which is especially important when handling heavy loads.
3. Actuators: Actuators provide the force that moves the racks along the rails. These can either be manual or powered by an electric motor. Manual actuators require physical effort to move the racks, while electric actuators use motors to extend and retract the racks at the push of a button.
4. Guiding Systems: These systems ensure that the racks move smoothly along the tracks, preventing them from skewing off course or becoming misaligned. This is important in maintaining the durability of the system and ensuring that the racks don’t get stuck or jammed during operation.
Each of these components plays an essential role in ensuring the smooth operation of the rear rack slide-out mechanism, making it an efficient and reliable system for storage optimization.
Rear rack slide-out mechanisms can be activated in two ways: manually or electrically. Both methods have their own advantages and are suitable for different use cases.
● Manual Activation: In a manual system, the rack is extended or retracted by pulling or pushing it along the tracks. This type of activation is typically more affordable, but it may require physical effort, especially when dealing with larger racks or heavy loads. While it can be a simple and cost-effective option, manual systems may not be ideal for users who require ease of use or have heavy-duty storage needs.
● Electric Activation: An electric rear rack slide-out mechanism uses an electric motor to extend and retract the racks. The motorized system can be controlled using a remote control or a switch, making it a much more convenient option. Electric systems are ideal for larger racks or heavier loads, where manual operation may not be practical. They offer smoother and more consistent movement, providing convenience for users who frequently need to access stored items.

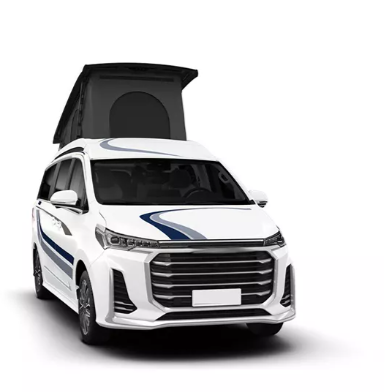

The Dongtai Self-Developed Inclined Lifting Mechanism, a similar system, offers a remote control functionality, allowing users to adjust the roof position with ease. This remote-controlled system ensures that the rear rack slide-out mechanism functions effortlessly, reducing manual strain and enhancing the user experience.
Once the system is activated, the racks begin to slide out smoothly along the tracks, bringing the stored items into view. The sliding process is designed to be precise and controlled, ensuring that the racks don’t wobble or misalign during extension. This is particularly important when dealing with larger or heavier items that could destabilize the system if not handled properly.
After the racks are fully extended, they remain in place until the user decides to retract them. The retraction process is equally smooth, with the racks sliding back into their storage compartments until they are fully retracted and flush with the compartment’s walls. This functionality ensures that the system takes up minimal space when not in use and allows users to expand the available space only when necessary.
Key Feature | Description | Benefit |
Smooth Sliding Process | The racks extend and retract smoothly with minimal effort. | Ensures reliability, stability, and ease of operation. |
Precise Movement | The guiding systems prevent wobbling and misalignment. | Guarantees safe handling of heavy or bulky items. |
Quick and Efficient | Opening and closing times can be as short as 60 seconds. | Reduces wait time and ensures convenience during use. |
The rear rack slide-out mechanism is designed to handle varying weights by distributing the load evenly across the system. Whether the rack is loaded with lightweight camping gear or heavier items like bicycles, the system ensures stability during both extension and retraction. This is achieved by reinforced rails and a robust actuator system.
Proper weight distribution is key to maintaining the longevity of the mechanism. When weight is distributed evenly, there is less strain on individual components, reducing wear and tear over time. This ensures that the system can support heavy loads without becoming damaged or misaligned, even with regular use.
One of the primary benefits of the rear rack slide-out mechanism is its ability to maximize storage space in environments where every inch counts. In RVs, motorhomes, or small homes, space is often at a premium, and using traditional storage solutions may not be feasible. The rear rack slide-out mechanism provides a way to access bulky items like camping gear, tools, and bikes without sacrificing valuable living space.
The system enables users to expand their available storage when needed and retract the racks when they’re not, ensuring that space is used as efficiently as possible. This flexibility is invaluable for RV owners or small-space dwellers who need to optimize every square inch of their living environment.
The rear rack slide-out mechanism enhances accessibility by making it easier for users to access items that are typically difficult to reach. For example, when traveling in an RV, the system allows users to access camping gear or other stored items without having to dig through packed compartments. By simply extending the rack, users can bring the items they need to a convenient height, reducing the hassle of searching for items buried at the bottom of a storage space.
The convenience of having a motorized or manual system that provides immediate access to stored items cannot be overstated. It’s especially useful when traveling or moving between different locations where quick and easy access is crucial.
When selecting a rear rack slide-out mechanism, it is important to measure the available space carefully. This ensures that the system will fit within the designated area without obstructing other features. Consider both the length and depth of the storage compartment to ensure a proper fit for the mechanism.
It is essential to choose a mechanism that can support the weight of the items you plan to store. Overloading the system can lead to failure of the rails or actuator, reducing the lifespan of the mechanism. Ensure that the mechanism is designed to handle the maximum load you intend to store and always follow manufacturer guidelines.
The rear rack slide-out mechanism is an effective solution for maximizing storage in compact spaces, whether for outdoor gear in an RV or to optimize a small home. By understanding its functionality and benefits, you can make an informed decision about integrating it into your space.

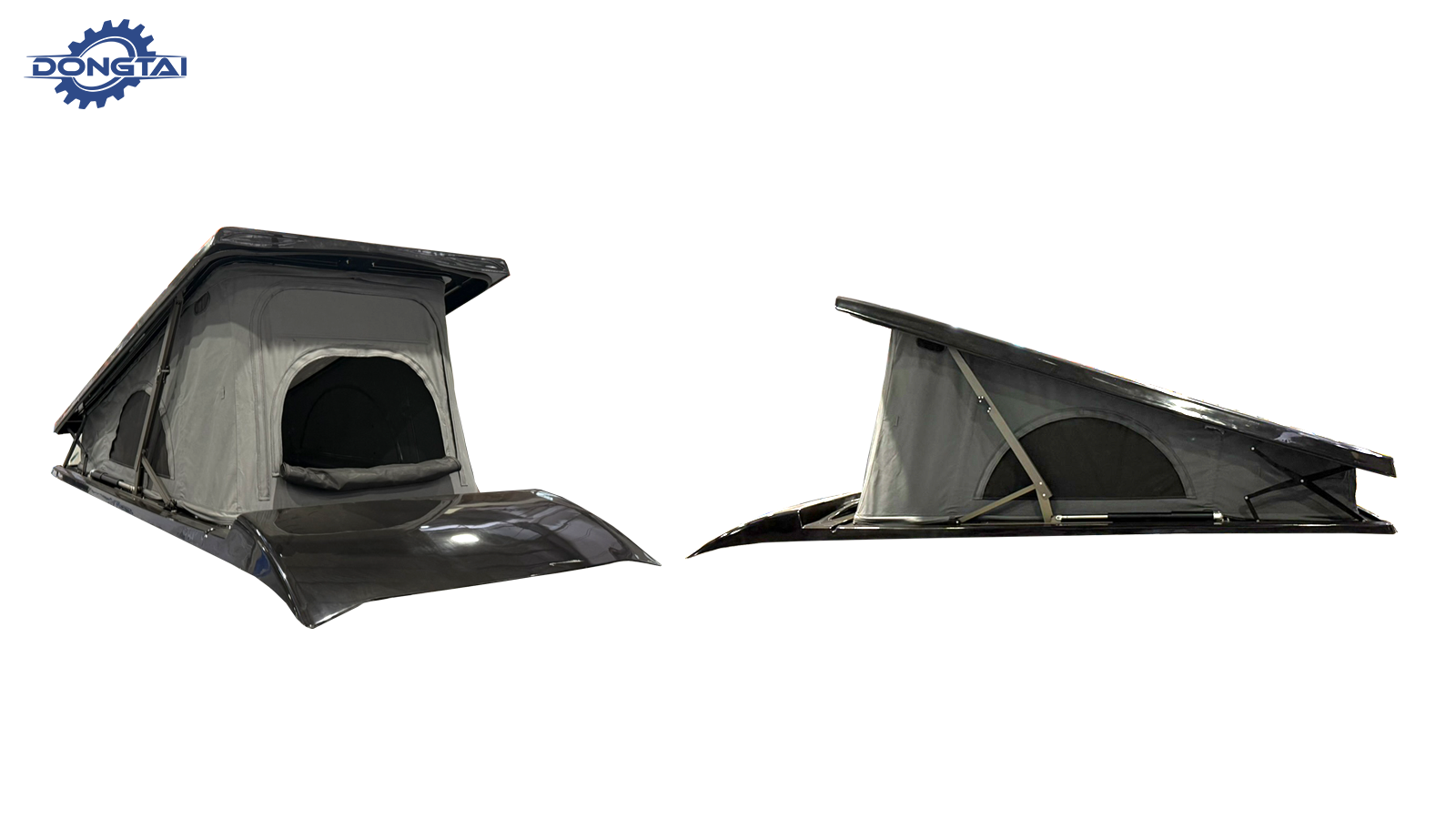

For added flexibility, Dongtai Precision Co. offers the Self-Developed Inclined Lifting Mechanism, perfect for RV roof upgrades with remote control functionality.
Proper maintenance and attention to weight capacity will ensure long-lasting, efficient operation, making it an essential tool for space-conscious users.
A: A Rear Rack Slide-Out Mechanism is a system that allows racks to smoothly slide in and out of a storage compartment, optimizing space in compact areas like RVs or small homes.
A: The mechanism uses rails or tracks to guide racks as they extend and retract. It can be activated manually or electrically, depending on the system design.
A: It maximizes storage space, providing easy access to items while keeping your environment organized, making it ideal for small spaces or RVs.
A: The weight capacity varies by design, but most mechanisms support up to 75 kg, ensuring reliable handling of bulky items like camping gear or luggage.
A: It increases usable storage space, enhances convenience, and makes it easier to access outdoor gear, ensuring a more organized and functional RV.
